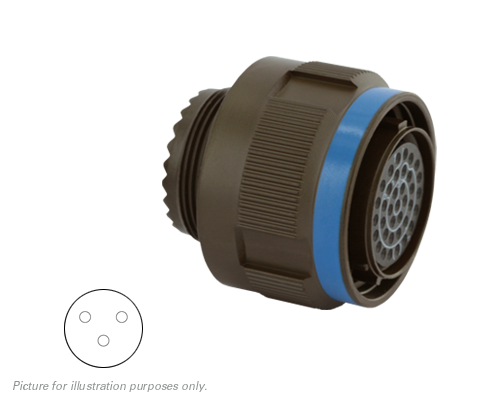

8D513W03BE image
Favorite
8D513W03BE image
Favorite

8D513W03BE

SOURIAU-SUNBANK
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description 8D 3C 3#16 SKT PLUG
PDF
/
Inventory: 2044
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Dimensions

Width (mm) 29.40
Length (mm) 29.40
Height (mm) 29.40
Height (in) 1.16
Length (in) 1.16
Width (in) 1.16

Technical

#16 contact rating (A) 13.00
Number of cavity #16 3
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Plug Type Straight Plug
Vrms (Sea Level) 1800
Sealing Level (IP) 67
Temperature Min. (°F) -85
Temperature Min. (°C) -65
Temperature Max. (F°) 347
Temperature Max. (°C) 175
Salt Spray (h) 500
Layout 03
Coupling Thread
Mating Cycles 500
Plating Cadmium
Shell Size 13
Contact Gender Socket (Female)
Number of Contacts 3
Function signal
Shielding Yes
Connector Type Plug

Physical

Insert Material Peek
Shell Material Aluminium
