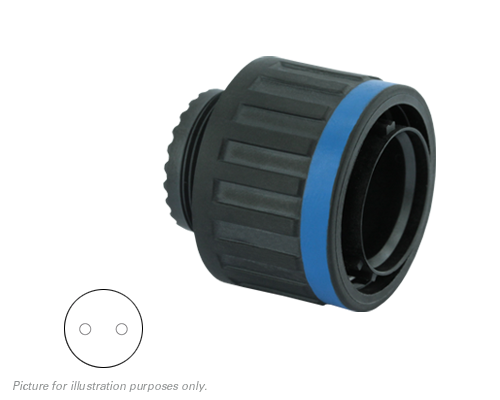

8D511X02PC
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 2C 2#16 PIN PLUG
PDF
/
Inventory: 3753
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Composite
Insert Material Peek
Technical
Connector Type Plug
Contact Type Crimp
Shielding No
Function signal
Number of Contacts 2
Contact Gender Pin (Male)
Shell Size 11
Mating Cycles 500
Coupling Thread
Layout 02
Salt Spray (h) 2000
Temperature Max. (°C) 175
Temperature Max. (F°) 347
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1800
Environment RoHS
Plug Type Straight Plug
Number of cavity #16 2
#16 contact rating (A) 13.00
Dimensions
Width (in) 0.98
Length (in) 1.22
Height (in) 0.98
Height (mm) 25.00
Length (mm) 31.00
Width (mm) 25.00
