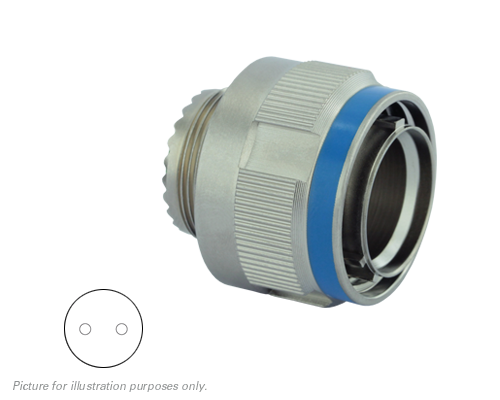

8D511S02PE
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 2C 2#16 PIN PLUG
PDF
/
Inventory: 1600
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Width (mm) 25.00
Length (mm) 31.00
Height (mm) 25.00
Height (in) 0.98
Length (in) 1.22
Width (in) 0.98
Technical
#16 contact rating (A) 13.00
Number of cavity #16 2
Plug Type Straight Plug
Environment RoHS
Vrms (Sea Level) 1800
Sealing Level (IP) 67
Temperature Min. (°F) -85
Temperature Min. (°C) -65
Temperature Max. (F°) 392
Temperature Max. (°C) 200
Salt Spray (h) 500
Layout 02
Coupling Thread
Mating Cycles 500
Plating Nickel
Shell Size 11
Contact Gender Pin (Male)
Number of Contacts 2
Function signal
Shielding Yes
Contact Type Crimp
Connector Type Plug
Physical
Insert Material Peek
Shell Material Stainless Steel
Contact Plating Gold
