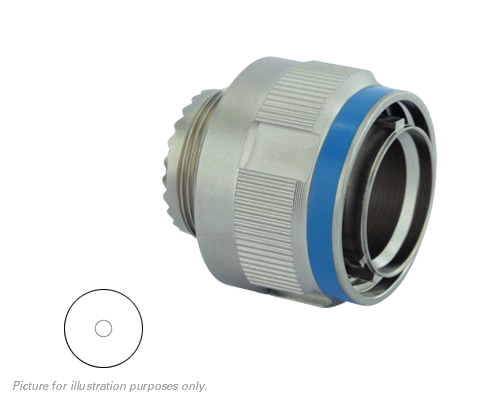

8D511S01AB
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 1C 1#12 PIN PLUG
PDF
/
Inventory: 3973
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Shell Material Stainless Steel
Insert Material Peek
Technical
Connector Type Plug
Shielding Yes
Function signal
Number of Contacts 1
Contact Gender Pin (Male)
Shell Size 11
Plating Nickel
Mating Cycles 500
Coupling Thread
Layout 01
Salt Spray (h) 500
Temperature Max. (°C) 200
Temperature Max. (F°) 392
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 2300
Environment RoHS
Plug Type Straight Plug
#12 contact rating (A) 23.00
Number of cavity #12 1
Dimensions
Width (in) 0.98
Length (in) 1.22
Height (in) 0.98
Height (mm) 25.00
Length (mm) 31.00
Width (mm) 25.00
