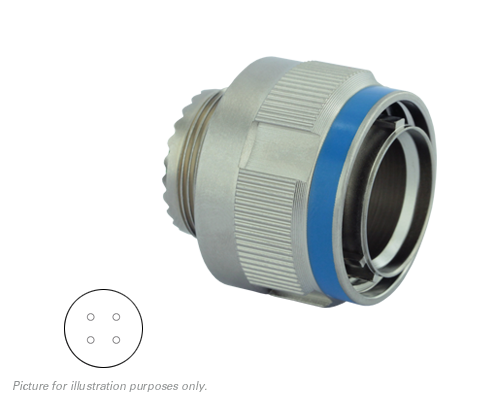

8D511F04PB
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 4C 4#20 PIN PLUG
PDF
/
Inventory: 9067
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Aluminium
Insert Material Peek
Technical
Connector Type Plug
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 4
Contact Gender Pin (Male)
Shell Size 11
Plating Nickel
Mating Cycles 500
Coupling Thread
Layout 04
Salt Spray (h) 48
Temperature Max. (°C) 200
Temperature Max. (F°) 392
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1800
Environment RoHS
Plug Type Straight Plug
Number of cavity #20 4
#20 contact rating (A) 7.30
Dimensions
Width (in) 0.98
Length (in) 0.98
Height (in) 0.98
Height (mm) 25.00
Length (mm) 25.00
Width (mm) 25.00
