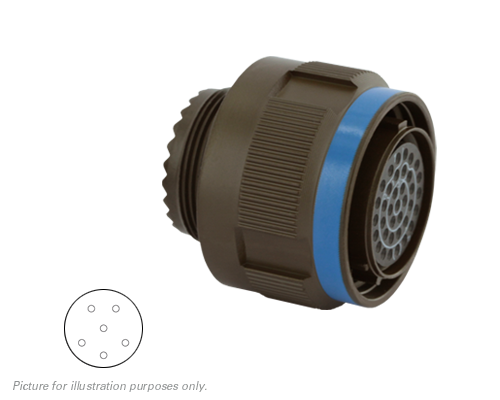

8D509W35SE
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 6C 6#22D SKT PLUG
PDF
/
Inventory: 6604
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Aluminium
Insert Material Peek
Technical
Connector Type Plug
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 6
Contact Gender Socket (Female)
Shell Size 9
Plating Cadmium
Mating Cycles 500
Coupling Thread
Layout 35
Salt Spray (h) 500
Temperature Max. (°C) 175
Temperature Max. (F°) 347
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1300
Plug Type Straight Plug
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Number of cavity #22D 6
Dimensions
Width (in) 0.86
Length (in) 0.86
Height (in) 0.86
Height (mm) 21.80
Length (mm) 21.80
Width (mm) 21.80
