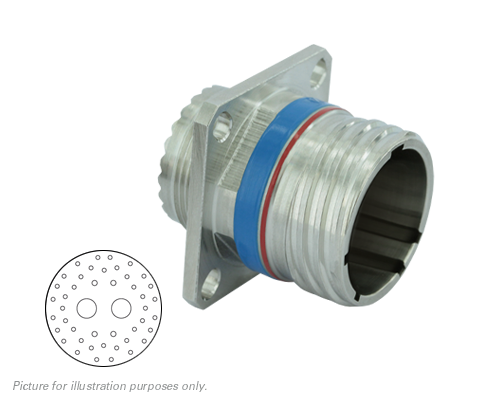

8D025S90AB image
Favorite
8D025S90AB image
Favorite

8D025S90AB

SOURIAU-SUNBANK
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description 8D 46C MIXED PIN RECP
PDF
/
Inventory: 7660
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Dimensions

Width (mm) 46.00
Length (mm) 34.40
Height (mm) 46.00
Height (in) 1.81
Length (in) 1.35
Width (in) 1.81

Technical

Number of cavity #8 2
#16 contact rating (A) 13.00
Number of cavity #16 4
#20 contact rating (A) 7.30
Number of cavity #20 40
Environment RoHS
Vrms (Sea Level) 1800
Sealing Level (IP) 67
Temperature Min. (°F) -85
Temperature Min. (°C) -65
Temperature Max. (F°) 392
Temperature Max. (°C) 200
Salt Spray (h) 500
Layout 90
Coupling Thread
Mating Cycles 500
Plating Nickel
Shell Size 25
Contact Gender Pin (Male)
Number of Contacts 46
Function signal
Shielding Yes
Connector Type Receptacle

Physical

Receptacle Mounting Type Square Flange Receptacle
Insert Material Peek
Shell Material Stainless Steel
