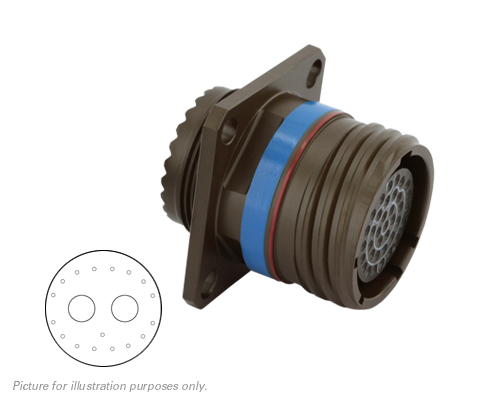

8D021W77BB
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 19C 17#22D 2#8 SKT RECP
PDF
/
Inventory: 5179
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Shell Material Aluminium
Insert Material Peek
Receptacle Mounting Type Square Flange Receptacle
Technical
Connector Type Receptacle
Shielding Yes
Function signal
Number of Contacts 19
Contact Gender Socket (Female)
Shell Size 21
Plating Cadmium
Mating Cycles 500
Coupling Thread
Layout 77
Salt Spray (h) 500
Temperature Max. (°C) 175
Temperature Max. (F°) 347
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1300
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Number of cavity #22D 17
Number of cavity #8 2
Dimensions
Width (in) 1.17
Length (in) 1.37
Height (in) 1.17
Height (mm) 29.70
Length (mm) 34.80
Width (mm) 29.70
