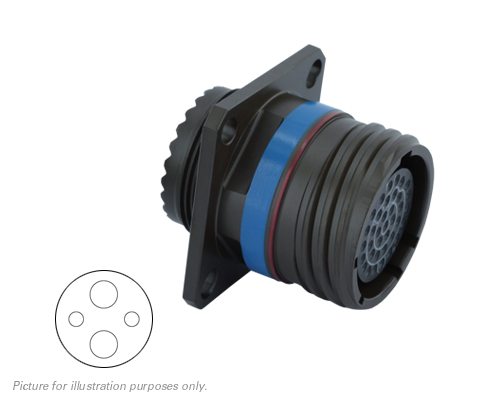

8D017Z22SA
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 4C 2#12 2#8 SKT RECP
PDF
/
Inventory: 6775
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Aluminium
Insert Material Peek
Receptacle Mounting Type Square Flange Receptacle
Technical
Connector Type Receptacle
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 4
Contact Gender Socket (Female)
Shell Size 17
Plating Black Zinc Nickel
Mating Cycles 500
Coupling Thread
Layout 22
Salt Spray (h) 500
Temperature Max. (°C) 200
Temperature Max. (F°) 392
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1300
Environment RoHS
Plating detail Zinc nickel (conductive) -65°C to +200°C
Number of cavity #8 2
#12 contact rating (A) 23.00
Number of cavity #12 2
Dimensions
Width (in) 1.31
Length (in) 1.34
Height (in) 1.31
Height (mm) 33.30
Length (mm) 34.10
Width (mm) 33.30
