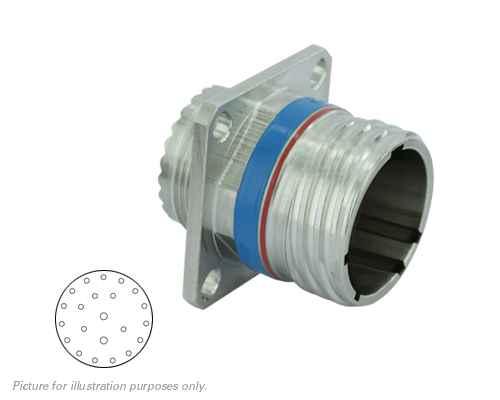

8D017F99PD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
8D 23C 21#20 2#16 PIN RECP
PDF
/
Inventory: 993
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Aluminum
Insert Material Thermoplastic
Technical
Operating Temperature -65°C~200°C
Packaging Bulk
Series MIL-DTL-38999 Series III, 8D
Pbfree Code yes
Part Status Active
Termination Crimp
Connector Type Receptacle, Male Pins
Number of Positions 23
Color Silver
Applications Aviation, Marine, Military
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A 13A
Total Number of Contacts 23
Orientation D
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Finish Nickel
Shell Size - Insert 17-99
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Compliance
RoHS Status ROHS3 Compliant
