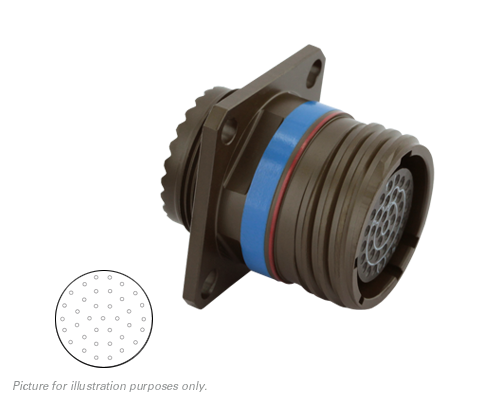

8D015W35SE
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 37C 37#22D SKT RECP
PDF
/
Inventory: 3885
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Aluminium
Insert Material Peek
Receptacle Mounting Type Square Flange Receptacle
Technical
Connector Type Receptacle
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 37
Contact Gender Socket (Female)
Shell Size 15
Plating Cadmium
Mating Cycles 500
Coupling Thread
Layout 35
Salt Spray (h) 500
Temperature Max. (°C) 175
Temperature Max. (F°) 347
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1300
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Number of cavity #22D 37
Dimensions
Width (in) 1.22
Length (in) 1.34
Height (in) 1.22
Height (mm) 31.00
Length (mm) 34.10
Width (mm) 31.00
