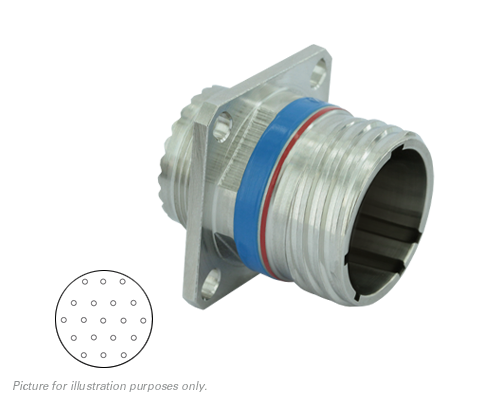

8D015K19AE
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 19C 19#20 PIN RECP
PDF
/
Inventory: 1639
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Shell Material Stainless Steel
Insert Material Peek
Receptacle Mounting Type Square Flange Receptacle
Technical
Connector Type Receptacle
Shielding Yes
Function signal
Number of Contacts 19
Contact Gender Pin (Male)
Shell Size 15
Plating Passivated
Mating Cycles 500
Coupling Thread
Layout 19
Salt Spray (h) 500
Temperature Max. (°C) 200
Temperature Max. (F°) 392
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1800
Environment RoHS
Number of cavity #20 19
#20 contact rating (A) 7.30
Dimensions
Width (in) 1.22
Length (in) 1.34
Height (in) 1.22
Height (mm) 31.00
Length (mm) 34.10
Width (mm) 31.00
