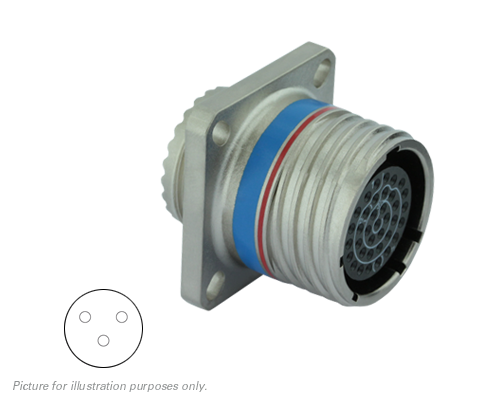

8D013M03JD image
Favorite
8D013M03JD image
Favorite

8D013M03JD

SOURIAU-SUNBANK
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description 8D 3C 3#16 SKT RECP
PDF
/
Inventory: 8583
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Plating Gold
Shell Material Composite
Insert Material Peek
Receptacle Mounting Type Square Flange Receptacle

Technical

Connector Type Receptacle
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 3
Contact Gender Socket (Female)
Shell Size 13
Plating Nickel
Mating Cycles 1500
Coupling Thread
Layout 03
Salt Spray (h) 2000
Temperature Max. (°C) 200
Temperature Max. (F°) 392
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1800
Environment RoHS
Number of cavity #16 3
#16 contact rating (A) 13.00

Dimensions

Width (in) 1.13
Length (in) 1.39
Height (in) 1.13
Height (mm) 28.60
Length (mm) 35.20
Width (mm) 28.60
