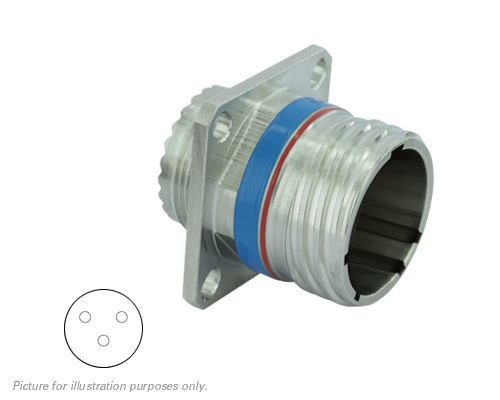

8D013F03PD
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 3C 3#16 PIN RECP
PDF
/
Inventory: 1996
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Aluminium
Insert Material Peek
Receptacle Mounting Type Square Flange Receptacle
Technical
Connector Type Receptacle
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 3
Contact Gender Pin (Male)
Shell Size 13
Plating Nickel
Mating Cycles 500
Coupling Thread
Layout 03
Salt Spray (h) 48
Temperature Max. (°C) 200
Temperature Max. (F°) 392
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1800
Environment RoHS
Number of cavity #16 3
#16 contact rating (A) 13.00
Dimensions
Width (in) 1.13
Length (in) 1.34
Height (in) 1.13
Height (mm) 28.60
Length (mm) 34.10
Width (mm) 28.60
