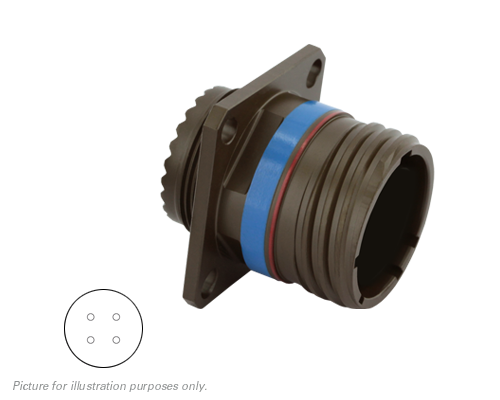

8D011W04PC
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 4C 4#20 PIN RECP
PDF
/
Inventory: 3143
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Shell Size - Insert 11-4
Shell Finish Olive Drab Cadmium
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation C
Current Rating (Amps) 7.5A
Contact Finish - Mating Gold
Fastening Type Threaded
Applications Aviation, Marine, Military
Color Olive Drab
Number of Positions 4
Connector Type Receptacle, Male Pins
Termination Crimp
Part Status Active
Series MIL-DTL-38999 Series III, 8D
Packaging Bulk
Operating Temperature -65°C~175°C
Physical
Insert Material Thermoplastic
Shell Material Aluminum
Mounting Feature Flange
Mounting Type Panel Mount
Contact Material Copper Alloy
