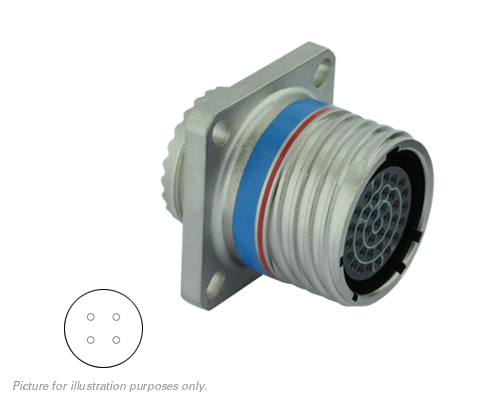

8D011M04JA image
Favorite
8D011M04JA image
Favorite

8D011M04JA

SOURIAU-SUNBANK
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description 8D 4C 4#20 SKT RECP
PDF
/
Inventory: 8752
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Dimensions

Width (mm) 26.20
Length (mm) 35.20
Height (mm) 26.20
Height (in) 1.03
Length (in) 1.39
Width (in) 1.03

Technical

#20 contact rating (A) 7.30
Number of cavity #20 4
Environment RoHS
Vrms (Sea Level) 1800
Sealing Level (IP) 67
Temperature Min. (°F) -85
Temperature Min. (°C) -65
Temperature Max. (F°) 392
Temperature Max. (°C) 200
Salt Spray (h) 2000
Layout 04
Coupling Thread
Mating Cycles 1500
Plating Nickel
Shell Size 11
Contact Gender Socket (Female)
Number of Contacts 4
Function signal
Shielding Yes
Contact Type Crimp
Connector Type Receptacle

Physical

Receptacle Mounting Type Square Flange Receptacle
Insert Material Peek
Shell Material Composite
Contact Plating Gold
