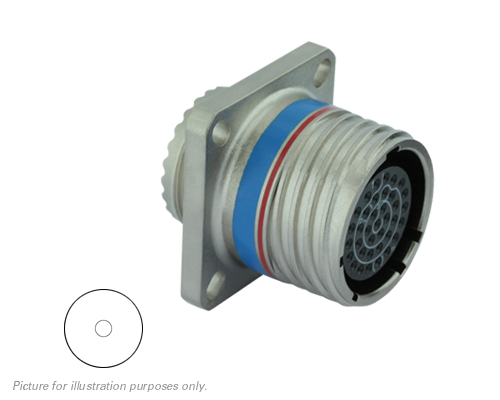

8D011M01BN
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 1C 1#12 SKT RECP
PDF
/
Inventory: 9037
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Shell Material Composite
Insert Material Peek
Receptacle Mounting Type Square Flange Receptacle
Technical
Connector Type Receptacle
Shielding Yes
Function signal
Number of Contacts 1
Contact Gender Socket (Female)
Shell Size 11
Plating Nickel
Mating Cycles 500
Coupling Thread
Layout 01
Salt Spray (h) 2000
Temperature Max. (°C) 200
Temperature Max. (F°) 392
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 2300
Environment RoHS
#12 contact rating (A) 23.00
Number of cavity #12 1
Dimensions
Width (in) 1.03
Length (in) 1.39
Height (in) 1.03
Height (mm) 26.20
Length (mm) 35.20
Width (mm) 26.20
