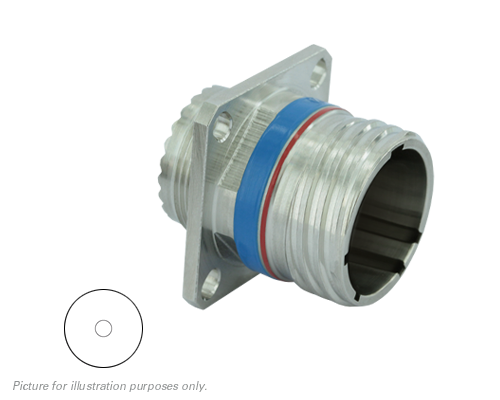

8D011K01AC
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 1C 1#12 PIN RECP
PDF
/
Inventory: 5114
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Width (mm) 26.20
Length (mm) 34.10
Height (mm) 26.20
Height (in) 1.03
Length (in) 1.34
Width (in) 1.03
Technical
Number of cavity #12 1
#12 contact rating (A) 23.00
Environment RoHS
Vrms (Sea Level) 2300
Sealing Level (IP) 67
Temperature Min. (°F) -85
Temperature Min. (°C) -65
Temperature Max. (F°) 392
Temperature Max. (°C) 200
Salt Spray (h) 500
Layout 01
Coupling Thread
Mating Cycles 500
Plating Passivated
Shell Size 11
Contact Gender Pin (Male)
Number of Contacts 1
Function signal
Shielding Yes
Connector Type Receptacle
Physical
Receptacle Mounting Type Square Flange Receptacle
Insert Material Peek
Shell Material Stainless Steel
