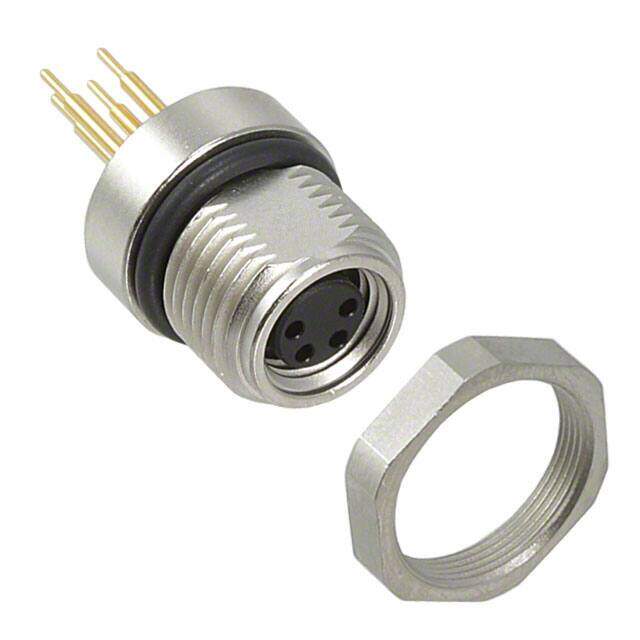

1694376 image
Favorite
1694376 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Conn Sensor Actuator F 4 POS Solder ST Thru-Hole 4 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $9.86
Unit Price: USD $9.856
≥1 USD $9.856
Inventory: 400
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB

Dimensions

Length 14mm

Technical

Thread Size M8
Number of Ports 1
Plating Brass, Nickel
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M8-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 50VAC 60VDC
Gender Male
Color Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series DSI
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Insert Material Polyamide (PA66), Nylon 6/6
Weight 13.950007g
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Screw, Through Hole
Contact Material Copper Tin

Supply Chain

Factory Lead Time 4 Weeks
