1694347
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

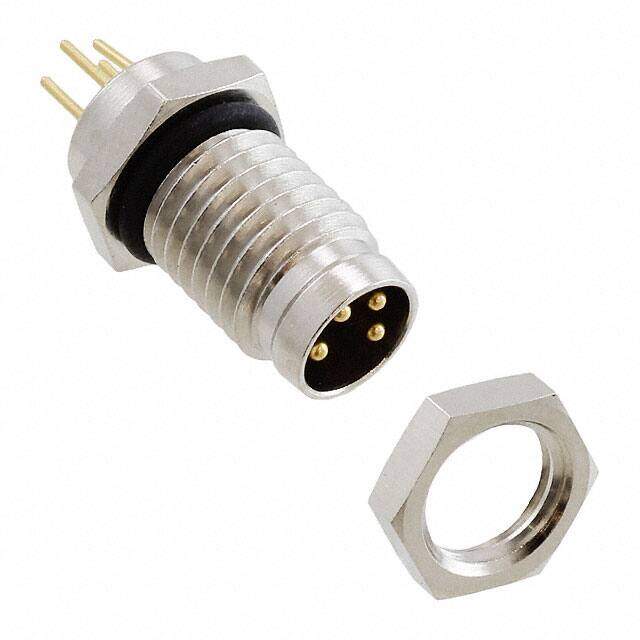

Circular Metric Connectors M8 BLHD PLG 4P
PDF
/
Buying Options
Total Price: USD $14.83
Unit Price: USD $14.828
≥1 USD $14.828
≥10 USD $13.64
≥100 USD $12.602304
≥500 USD $12.009272
≥1000 USD $11.94336
Inventory: 467
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M8
Number of Ports 1
Max Current Rating 4A
Insulation Resistance 100MOhm
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Approval Agency IEC, UL
Shell Size - Insert M8-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 50VAC 60VDC
Gender Female
Color Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series DSI
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Weight 5.800001g
Housing Material Polyamide
Shell Material Brass
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Screw, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
