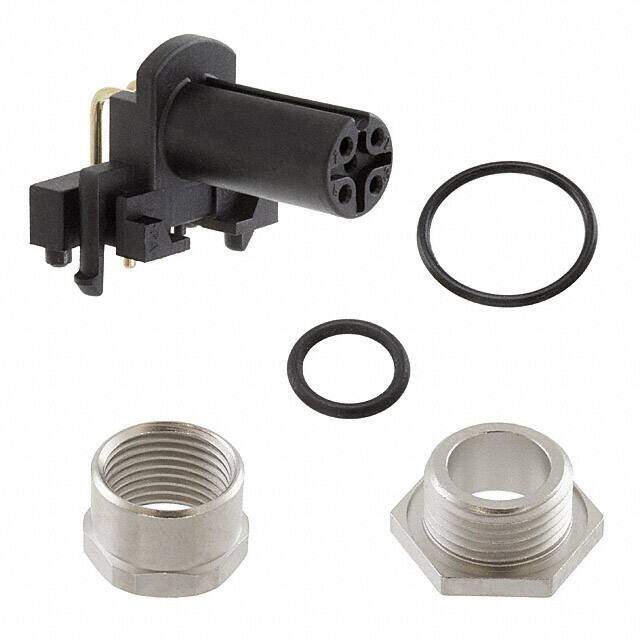

1694240
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 5POS GOLD SOLDER
PDF
/
Buying Options
Total Price: USD $17.19
Unit Price: USD $17.1864
≥1 USD $17.1864
Inventory: 276
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Number of Ports 1
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 60V
Fastening Type Threaded
Gender Receptacle
Color Silver
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide, Board Lock
JESD-609 Code e4
Series DSIV
Published 2012
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Weight 14.650013g
Shell Material Brass
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Bulkhead, Panel, Screw, Through Hole
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
