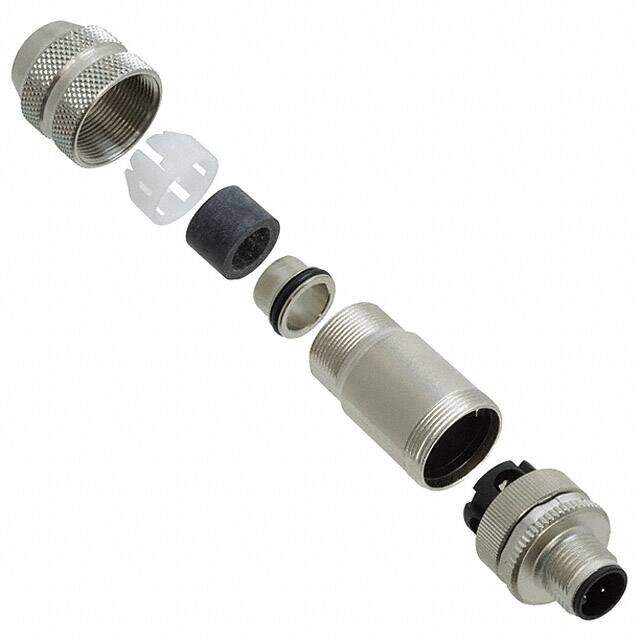

1693830
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors SACC-M12MS-4CON-PG 7 4P MALE STRT M12
PDF
/
Buying Options
Total Price: USD $18.29
Unit Price: USD $18.2864
≥1 USD $18.2864
Inventory: 59
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Shell Material Zinc Die Cast
Housing Material Zinc
Weight 50.499998g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2011
Series SACC
JESD-609 Code e4
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 4
Color Silver
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94 HB
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
