RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

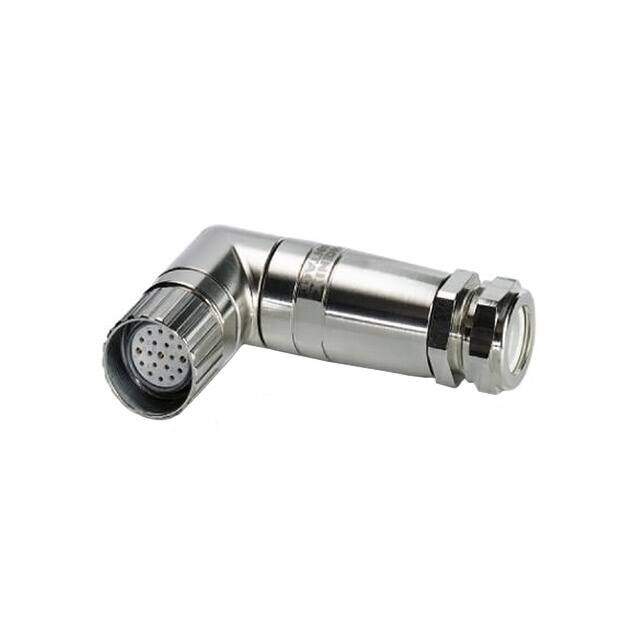

Description Circular Metric Connectors RC/TWGM/KVD/LBL 16+3
PDF
/
Inventory: 5529
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status RoHS Compliant

Technical

Thread Size M23
Cable Opening 0.374 ~ 0.571 (9.50mm ~ 14.50mm)
Backshell Type SOLID
Empty Shell NO
Number of Contacts 19
Shell Size - Insert M23-19
Shell Finish Nickel
Current Rating 10A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
HTS Code 8536.69.40.20
Voltage - Rated 150V
Color Silver
Number of Positions 19 (16 + 3 Power)
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series RC
Published 2012
Packaging Bulk
Operating Temperature -20°C~125°C

Physical

Insert Material Polybutylene Terephthalate (PBT)
Weight 215.500006g
Shell Material Gadolinium-Zinc
Mounting Type Free Hanging (In-Line), Angled
Mount Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 5 Weeks
