1685505
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

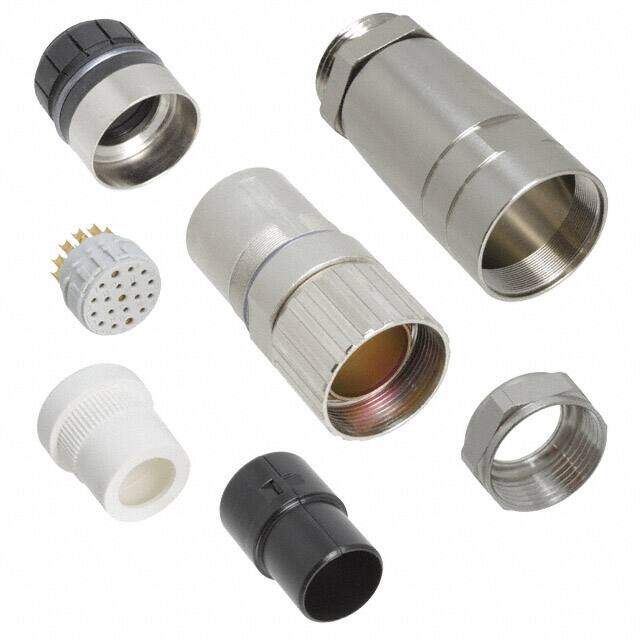

Circular Metric Connectors RC/TGGM/KVD/LBL 16+3
PDF
/
Buying Options
Total Price: USD $95.03
Unit Price: USD $95.0312
≥1 USD $95.0312
Inventory: 64
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
RoHS Status RoHS Compliant
Technical
Wire/Cable Diameter 14.5 mm
Thread Size M23
Cable Opening 0.374 ~ 0.571 (9.50mm ~ 14.50mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Number of Contacts 19
Shell Size - Insert M23-19
Shell Finish Nickel
Current Rating 10A
Reach Compliance Code unknown
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
HTS Code 8536.69.40.20
Voltage - Rated 150V
Color Silver
Number of Positions 19 (16 + 3 Power)
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
JESD-609 Code e4
Series RC
Published 2013
Packaging Bulk
Operating Temperature -20°C~125°C
Physical
Insert Material Polybutylene Terephthalate (PBT)
Weight 146.800011g
Housing Material Brass
Shell Material Gadolinium-Zinc
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 5 Weeks
