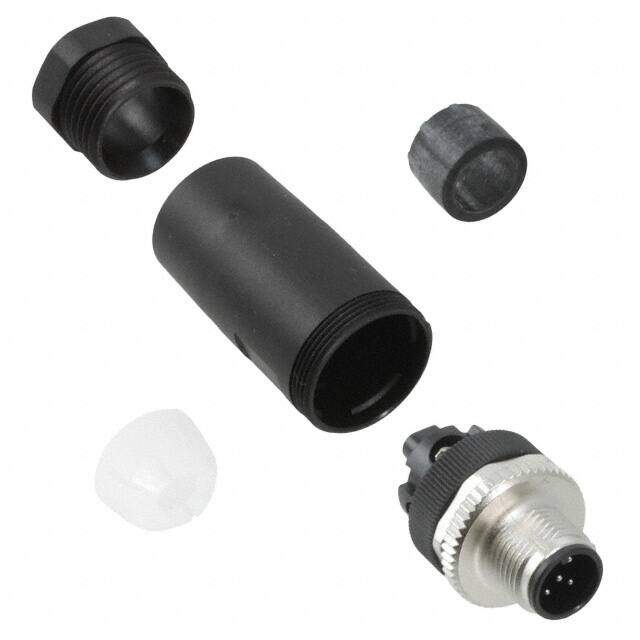

1681460 image
Favorite
1681460 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors M12 PLG 5P PG9 BLK
PDF
/
Buying Options
Total Price: USD $13.6
Unit Price: USD $13.596
≥1 USD $13.596
≥10 USD $12.51096
≥100 USD $11.5588
≥500 USD $11.01496
≥1000 USD $10.954451
Inventory: 4815
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB

Dimensions

Length 60mm

Technical

Thread Size M12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Copper Alloy
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Black, Silver
Number of Positions 5
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 23.729997g
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Brass, Bronze
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 4 Weeks
