1681172
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

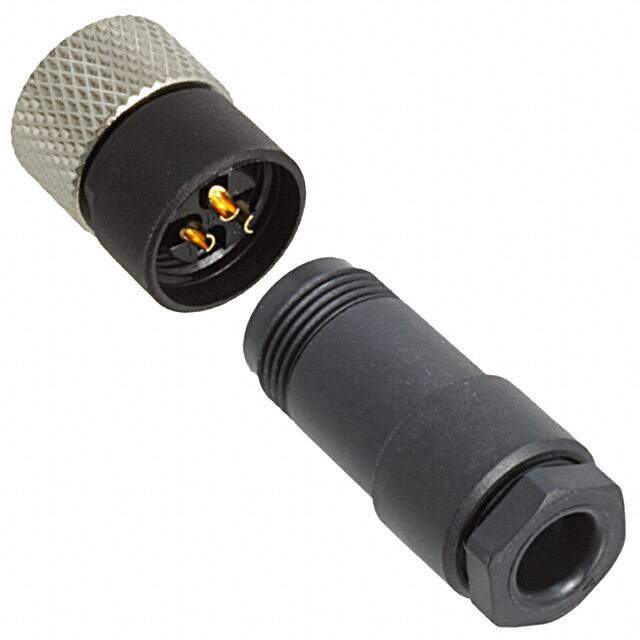

Circular Metric Connectors M8 SKT 3P SOLDER TER SACC-M 8FS-3CON-M
PDF
/
Buying Options
Total Price: USD $14.91
Unit Price: USD $14.9072
≥1 USD $14.9072
≥10 USD $13.71304
≥100 USD $12.669712
≥500 USD $12.073424
≥1000 USD $12.007142
Inventory: 124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Brass
Housing Material PBT
Weight 8.490002g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 3
Color Black, Silver
Gender Receptacle
Voltage - Rated 48VAC 60VDC
Fastening Type Threaded
Voltage - Rated DC 60V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 3
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M8-3
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.138 ~ 0.197 (3.50mm ~ 5.00mm)
Thread Size M8
Dimensions
Length 37mm
Compliance
Material Flammability Rating UL94 HB
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
