1681156
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

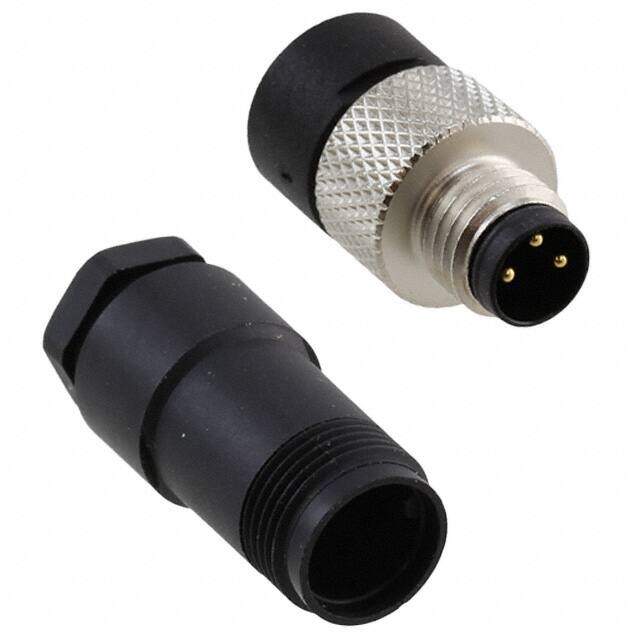

Circular Metric Connectors M8 PLG 3P SOLDER TER SACC-M 8MS-3CON-M
PDF
/
Buying Options
Total Price: USD $14.91
Unit Price: USD $14.9072
≥1 USD $14.9072
≥10 USD $13.71304
≥100 USD $12.669712
≥500 USD $12.073424
≥1000 USD $12.007142
Inventory: 241
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Dimensions
Length 45mm
Technical
Thread Size M8
Cable Opening 0.138 ~ 0.197 (3.50mm ~ 5.00mm)
Number of Ports 1
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M8-3
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Depth 2.29mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 3
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 60V
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Black, Silver
Connector Type Plug, Male Pins
Termination Solder Cup
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polybutylene Terephthalate (PBT)
Insert Material Polyamide (PA), Nylon
Weight 8.650006g
Housing Material PBT
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
