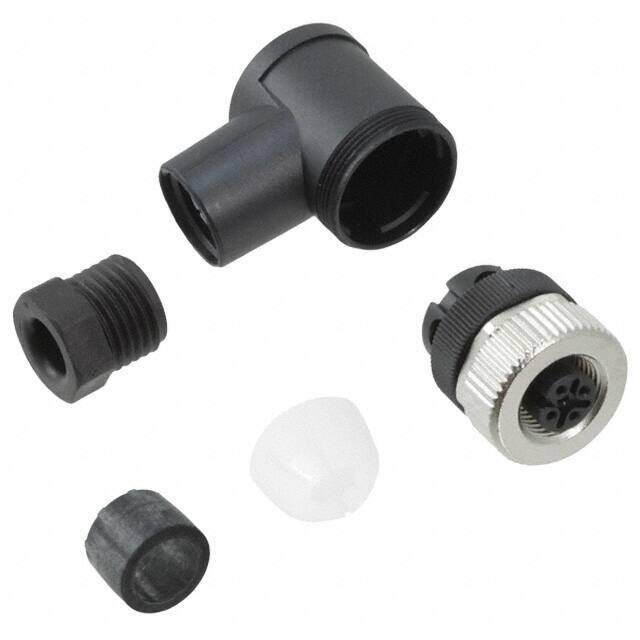

1681143 image
Favorite
1681143 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors M12 R/A SKT 4P PG7
PDF
/
Buying Options
Total Price: USD $9.72
Unit Price: USD $9.724
≥1 USD $9.724
Inventory: 291
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper Zinc
Contact Plating Brass, Nickel, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Zinc Die Cast
Housing Material Plastic
Weight 28.349523g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2009
Series SACC
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Screw
Connector Type Receptacle, Female Sockets
Color Black, Silver
Voltage - Rated 250V
Fastening Type Threaded
Contact Finish - Mating Copper Alloy
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 4mm
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Max Voltage Rating (AC) 150V
Number of Ports 1
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Thread Size M12

Dimensions

Length 35mm

Compliance

Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
