1681130
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

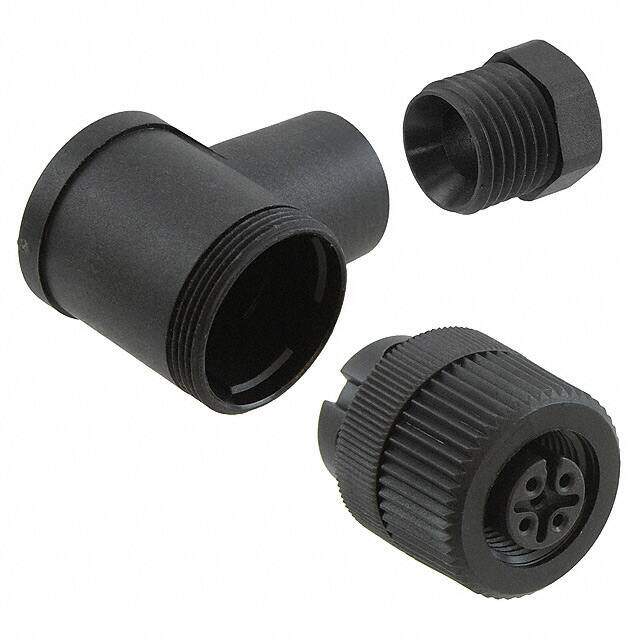

Circular Metric Connectors M12 R/A SKT 4P PG7
PDF
/
Buying Options
Total Price: USD $11.33
Unit Price: USD $11.3256
≥1 USD $11.3256
≥10 USD $10.4192
≥100 USD $9.626848
≥500 USD $9.173736
≥1000 USD $9.123418
Inventory: 95
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Number of Ports 1
Max Current Rating 4A
Insulation Resistance 100MOhm
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Approval Agency IEC, UL
Shell Size - Insert M12-4
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Copper Alloy
Voltage - Rated DC 250V
Fastening Type Threaded
Gender Receptacle
Color Black
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 15.929994g
Housing Material PBT
Shell Material Plastic
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Brass, Bronze
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
