1681127
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

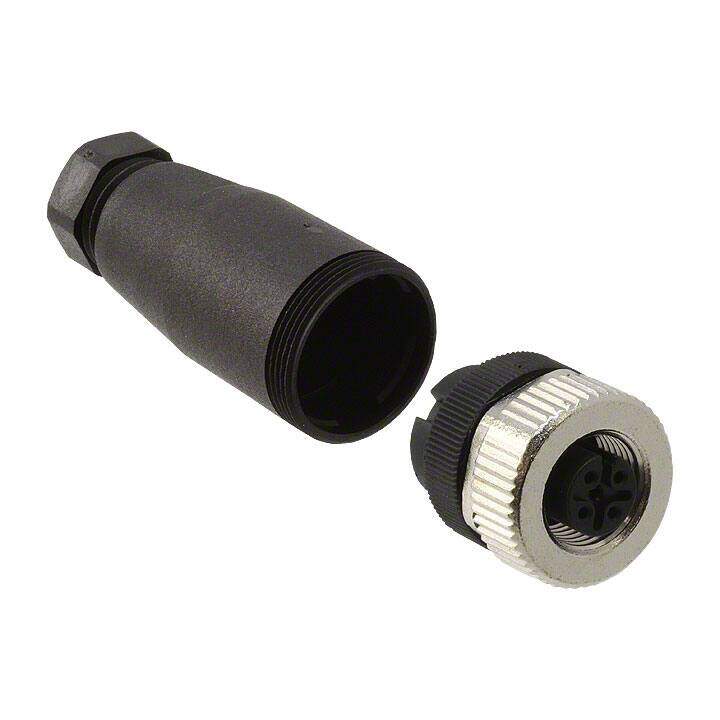

Circular Metric Connectors M12 SKT 4P PG7 BLK SACC-M12FS-4CON-PG7M
PDF
/
Buying Options
Total Price: USD $13.09
Unit Price: USD $13.0944
≥1 USD $13.0944
≥10 USD $12.0472
≥100 USD $11.13024
≥500 USD $10.606552
≥1000 USD $9.951779
≥3000 USD $9.49344
Inventory: 10928
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Dimensions
Length 54mm
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Number of Ports 1
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Copper Alloy
Fastening Type Threaded
Voltage - Rated 250V
Color Black, Silver
Connector Type Receptacle, Female Sockets
Termination Screw
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 24.569993g
Housing Material Plastic
Shell Material Zinc Die Cast
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Brass, Nickel, Tin
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 7 Weeks
