1681088
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

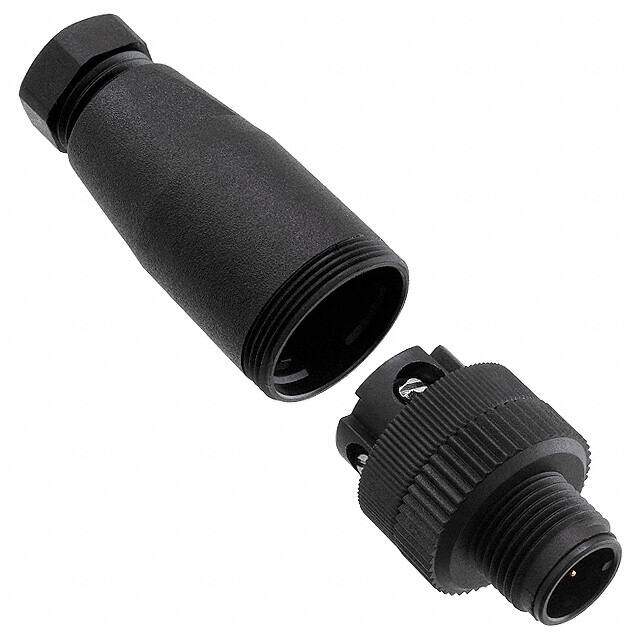

Conn Sensor Actuator M 4 POS ST Cable Mount 4 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $11.33
Unit Price: USD $11.3256
≥1 USD $11.3256
≥10 USD $10.4192
≥100 USD $9.626848
≥500 USD $9.173736
≥1000 USD $9.123418
Inventory: 267
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 HB
Dimensions
Length 60mm
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Max Current Rating 4A
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Voltage - Rated AC 1.25kV
Shell Size - Insert M12-4
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Copper Alloy
Fastening Type Threaded
Voltage - Rated 250V
Color Black
Number of Positions 4
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2005
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 17.300013g
Housing Material PBT
Shell Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Brass
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
