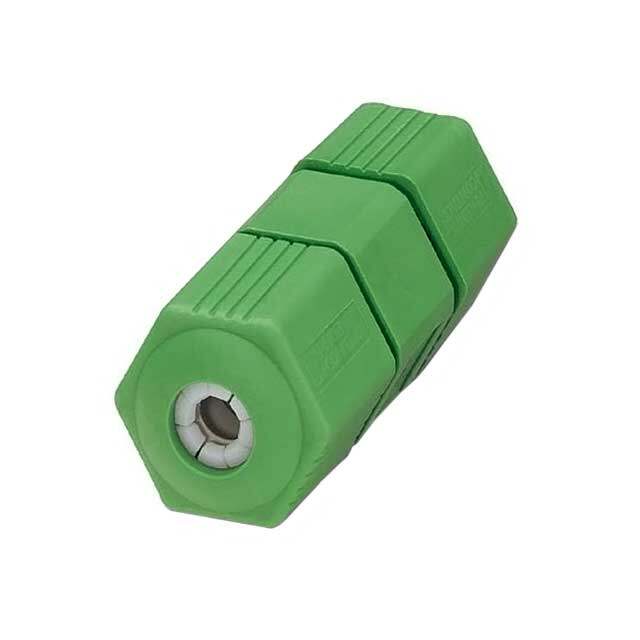

1670248 image
Favorite
1670248 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN DISTRIBUTOR 3POS TIN IDC
PDF
/
Buying Options
Total Price: USD $18.1
Unit Price: USD $18.1016
≥1 USD $18.1016
≥10 USD $16.65664
≥100 USD $15.38944
≥500 USD $14.6652
≥1000 USD $14.584698
Inventory: 38
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP65, Water Resistant, Waterproof
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 58.2mm

Technical

Cable Opening 0.276 ~ 0.354 (7.00mm ~ 9.00mm)
Coupling Type SNAP
Backshell Type SOLID
Empty Shell NO
Contact Gender FEMALE
Current Rating 17.5A
Reach Compliance Code unknown
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation Straight
Total Number of Contacts 3
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Threaded
Voltage - Rated 250V
Color Green
Number of Positions 3
Connector Type Distributor
Termination IDC
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e3
Series QPD
Published 2012
Packaging Bulk
Operating Temperature -25°C~80°C

Physical

Backshell Material, Plating Polyamide (PA6), Nylon 6
Insert Material Polyamide (PA), Nylon
Weight 149.999992g
Housing Material Nylon
Shell Material Polyamide (PA66), Nylon 6/6
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 4 Weeks
