1663116
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

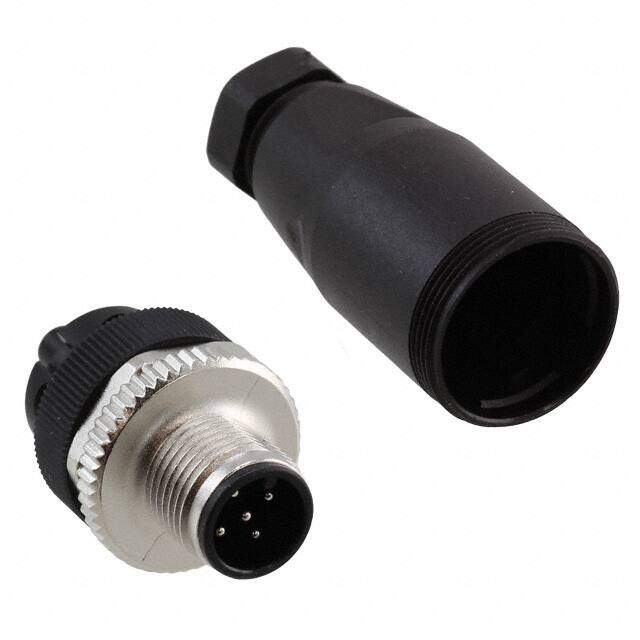

Circular Metric Connectors M12 PLG 5P PG7 BLK
PDF
/
Buying Options
Total Price: USD $13.6
Unit Price: USD $13.596
≥1 USD $13.596
≥10 USD $12.51096
≥100 USD $11.5588
≥500 USD $11.01496
≥1000 USD $10.954451
Inventory: 4392
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Dimensions
Length 60mm
Height 62mm
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Number of Ports 1
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Voltage - Rated AC 833mV
Shell Size - Insert M12-5
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Copper Alloy
Voltage - Rated DC 60V
Fastening Type Threaded
Color Black, Silver
Connector Type Plug, Male Pins
Termination Screw
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2005
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 23.130007g
Housing Material PBT
Shell Material Zinc Die Cast
Insulation Material Plastic
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Brass, Nickel
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
