1662528
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

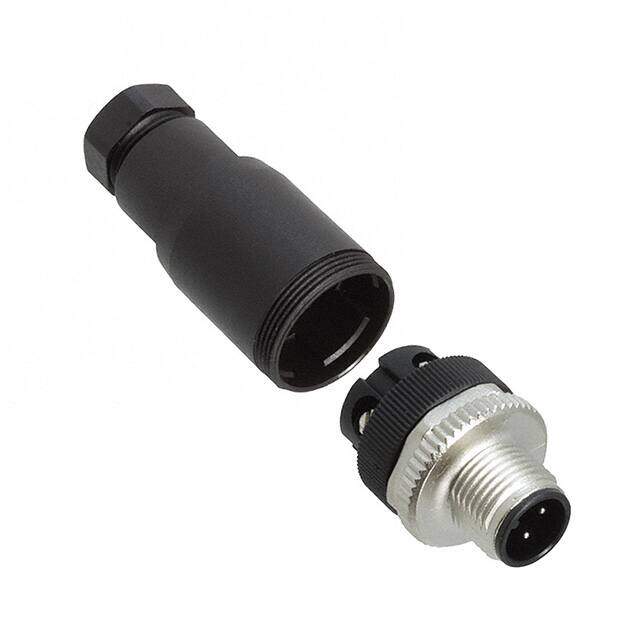

Circular Metric Connectors M12 PLG 4P PG7 BLK SACC-M12MS-4CON-PG7M
PDF
/
Buying Options
Total Price: USD $13.09
Unit Price: USD $13.0944
≥1 USD $13.0944
≥10 USD $12.0472
≥100 USD $11.13024
≥500 USD $10.606552
≥1000 USD $9.951779
≥3000 USD $9.49344
Inventory: 8001
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Contact Plating Brass, Nickel, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Number of Pins 4
Shell Material Zinc Die Cast
Housing Material Plastic
Weight 22.339991g
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2001
Series SACC
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 4
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black, Silver
Gender Male
Voltage - Rated 250V
Fastening Type Threaded
Voltage - Rated DC 250V
Contact Finish - Mating Copper Alloy
Current Rating (Amps) 4A
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Number of Contacts 4
Contact Gender Male
Number of Ports 1
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Thread Size M12
Dimensions
Length 62mm
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
