1662256
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Circular Connectors
Description

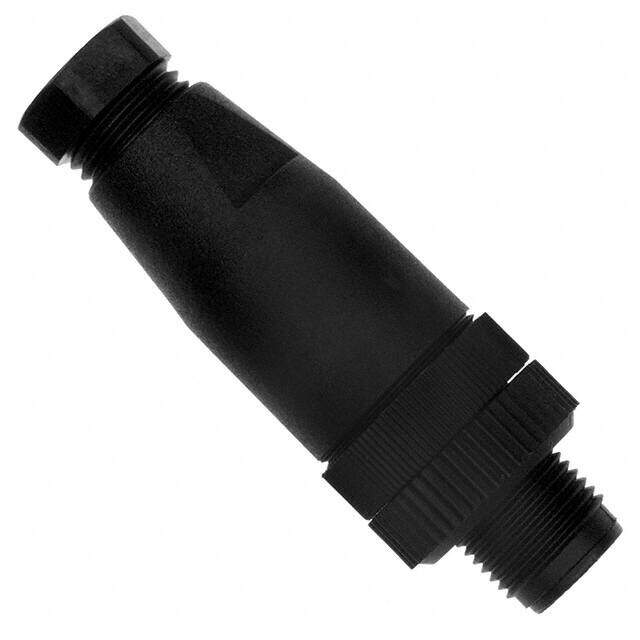

Circular Metric Connectors M12 PLG 5P PG7 BLK
PDF
/
Buying Options
Total Price: USD $13.07
Unit Price: USD $13.068
≥1 USD $13.068
≥10 USD $12.02256
≥100 USD $11.107888
≥500 USD $10.58508
≥1000 USD $10.526982
Inventory: 1139
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 HB
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-5
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Copper Alloy
Fastening Type Threaded
Voltage - Rated 48VAC 60VDC
Color Black
Number of Positions 5
Connector Type Plug, Male Pins
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series SACC
Published 2003
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 18.149988g
Insulation Material Plastic
Package / Case Module
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Brass
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 4 Weeks
