1641785
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

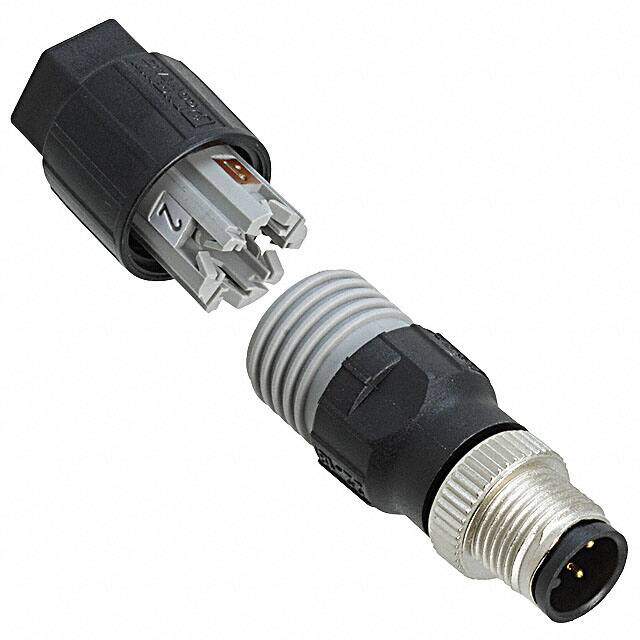

Circular Metric Connectors M12 SENSOR PLG 4P
PDF
/
Buying Options
Total Price: USD $14.48
Unit Price: USD $14.4848
≥1 USD $14.4848
≥10 USD $13.32672
≥100 USD $12.312784
≥500 USD $11.733392
≥1000 USD $11.669011
Inventory: 258
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 55mm
Technical
Thread Size M12
Cable Opening 0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M12-4
Shell Finish Nickel
Current Rating 4A
Reach Compliance Code unknown
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 250V
Fastening Type Threaded
Voltage - Rated 250V
Color Black, Silver
Number of Positions 4
Connector Type Plug, Male Pins
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2009
Packaging Bulk
Operating Temperature -25°C~80°C
Physical
Backshell Material, Plating Polyamide (PA6), Nylon 6
Insert Material Thermoplastic Polyurethane (TPU)
Weight 12.560001g
Housing Material Plastic
Shell Material Zinc Die Cast
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Tin
Supply Chain
Factory Lead Time 4 Weeks
