1641701
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

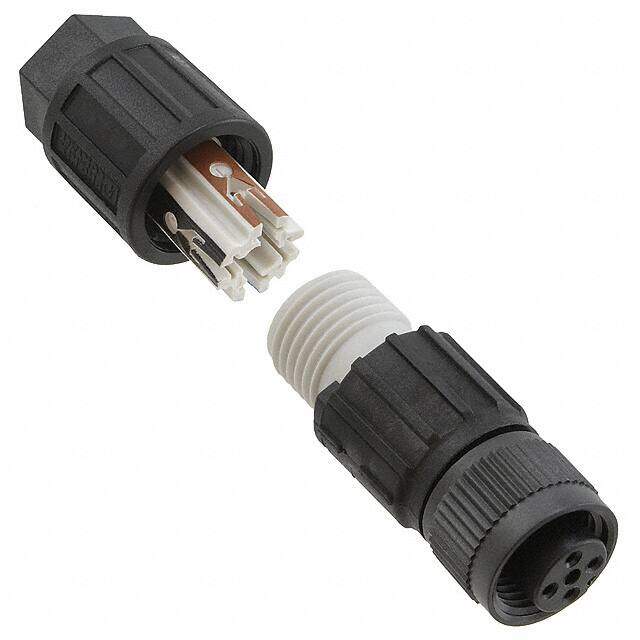

Circular Metric Connectors M12 SENSOR SKT 4P
PDF
/
Buying Options
Total Price: USD $14.01
Unit Price: USD $14.0096
≥1 USD $14.0096
≥10 USD $12.88936
≥100 USD $11.908864
≥500 USD $11.34848
≥1000 USD $11.286211
Inventory: 133
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Plastic
Weight 10.000011g
Insert Material Thermoplastic Polyurethane (TPU)
Backshell Material, Plating Polyamide (PA6), Nylon 6
Technical
Operating Temperature -25°C~80°C
Packaging Bulk
Published 2009
Series SACC
JESD-609 Code e4
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Black
Voltage - Rated 125V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Shell Size - Insert M12-4
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Cable Opening 0.138 ~ 0.236 (3.50mm ~ 6.00mm)
Thread Size M12
Dimensions
Length 50mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, Water Resistant, Waterproof
