1641691 image
Favorite
1641691 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors

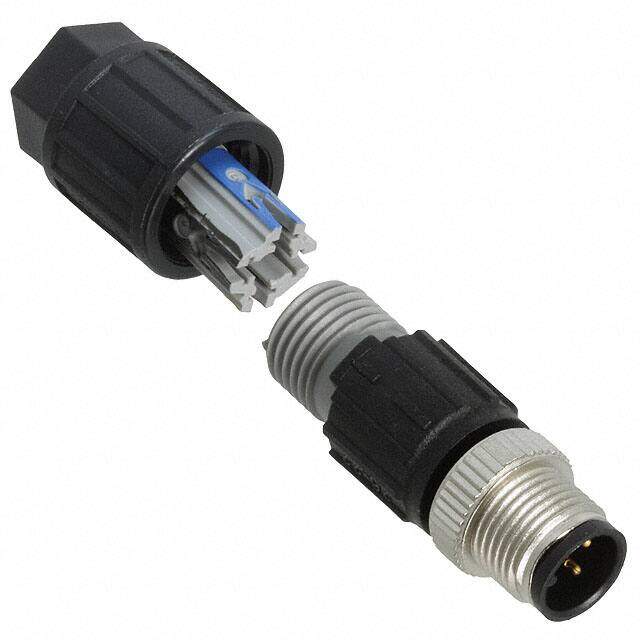

Description Circular Metric Connectors M12 SENSOR PLG 4P
PDF
/
Buying Options
Total Price: USD $14.48
Unit Price: USD $14.4848
≥1 USD $14.4848
≥10 USD $13.32672
≥100 USD $12.312784
≥500 USD $11.733392
≥1000 USD $11.669011
Inventory: 553
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Plastic
Weight 12.100002g
Insert Material Thermoplastic Polyurethane (TPU)
Backshell Material, Plating Polyamide (PA6), Nylon 6

Technical

Operating Temperature -25°C~80°C
Packaging Bulk
Published 2009
Series SACC
JESD-609 Code e4
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination IDC
Connector Type Plug, Male Pins
Color Black, Silver
Voltage - Rated 125V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation A
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Reach Compliance Code unknown
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Approval Agency UL
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Max Current Rating 4A
Number of Ports 1
Cable Opening 0.138 ~ 0.236 (3.50mm ~ 6.00mm)
Thread Size M12

Dimensions

Length 52mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant, Waterproof
