1641578
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

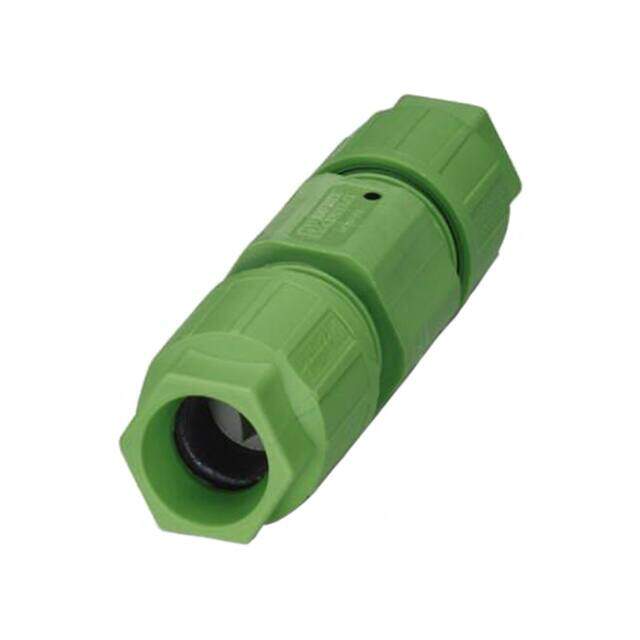

Circular Metric Connectors Q 1.5.4IDC/24- 24KU-KU
PDF
/
Buying Options
Total Price: USD $21.42
Unit Price: USD $21.4192
≥1 USD $21.4192
≥10 USD $19.70584
≥100 USD $18.206496
≥500 USD $17.34964
≥1000 USD $16.278522
≥3000 USD $15.52892
Inventory: 96
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA), Nylon
Housing Material Polyamide
Weight 124.999993g
Insert Material Polyamide (PA), Nylon
Technical
Operating Temperature -25°C~80°C
Packaging Bulk
Published 2014
Series QPD
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
ECCN Code EAR99
Connector Type Distributor
Number of Positions 4
Color Green
Voltage - Rated 1kV
Fastening Type Threaded
Contact Finish - Mating Tin
Orientation Straight
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Current Rating 15A
Cable Opening 0.236 ~ 0.472 (6.00mm ~ 12.00mm)
Wire/Cable Diameter 12 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP65, IP66, Water Resistant, Waterproof
