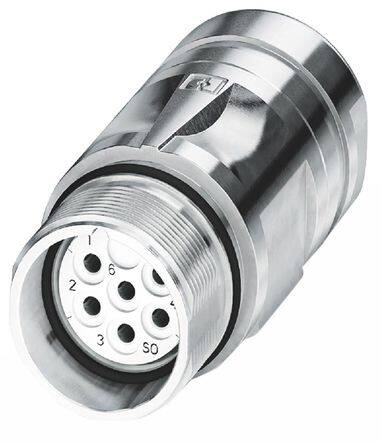

1620079 image
Favorite
1620079 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT 9POS INLINE SKT M23
PDF
/
Inventory: 5621
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Copper Zinc
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Number of Pins 8
Shell Material Gadolinium-Zinc
Housing Material Plastic
Insert Material Polybutylene Terephthalate (PBT)

Technical

Operating Temperature -40°C~125°C
Packaging Bulk
Published 2014
Series CA
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 9 (8 + 1 Power)
Color Silver
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation N (Normal)
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Current Rating 20A
Shell Size - Insert M23-9
Number of Contacts 9
Contact Gender Female
Cable Opening 0.236 ~ 0.394 (6.00mm ~ 10.00mm)

Compliance

RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
