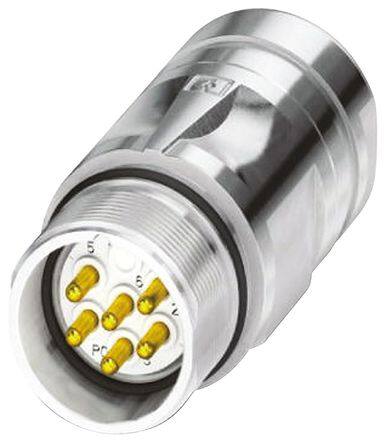

1620078 image
Favorite
1620078 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT MALE 9POS GOLD SOLDER
PDF
/
Inventory: 3106
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant

Technical

Cable Opening 0.236 ~ 0.394 (6.00mm ~ 10.00mm)
Contact Gender Male
Shell Size - Insert M23-9
Current Rating 20A
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Contact Finish - Mating Gold
Fastening Type Push-Twist
Color Silver
Number of Positions 9 (8 + 1 Power)
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series CA
Published 2014
Packaging Bulk
Operating Temperature -40°C~125°C

Physical

Insert Material Polybutylene Terephthalate (PBT)
Housing Material Plastic
Shell Material Gadolinium-Zinc
Number of Pins 9
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 5 Weeks
