1619950
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

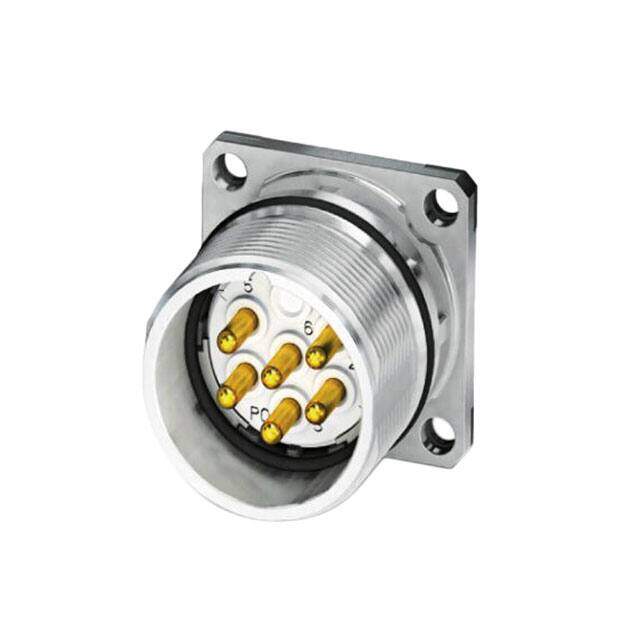

CONN RCPT MALE 9POS GOLD SOLDER
PDF
/
Inventory: 1160
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Copper Zinc
Contact Plating Gold
Mount Flanges, Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Flange
Number of Pins 9
Shell Material Copper Zinc
Insert Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2015
Series CA
Feature Shielded
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Male Pins
Number of Positions 9 (8 + 1 Power)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Silver
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation N (Normal)
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Size - Insert M23-9
Compliance
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
