1619509
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

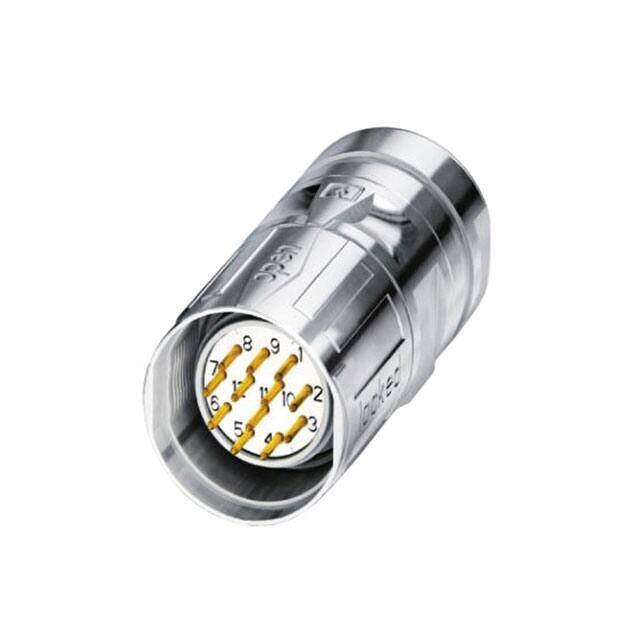

CONN PLUG 19POS INLINE PIN M23
PDF
/
Inventory: 5455
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Technical
Cable Opening 0.236 ~ 0.394 (6.00mm ~ 10.00mm)
Shell Size - Insert M23-19
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Contact Finish - Mating Gold
Fastening Type Push-Twist
Color Silver
Number of Positions 19 (16 + 3 Power)
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell, Coupling Nut
Series CA
Published 2015
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Housing Material Plastic
Shell Material Gadolinium-Zinc
Number of Pins 19
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 5 Weeks
