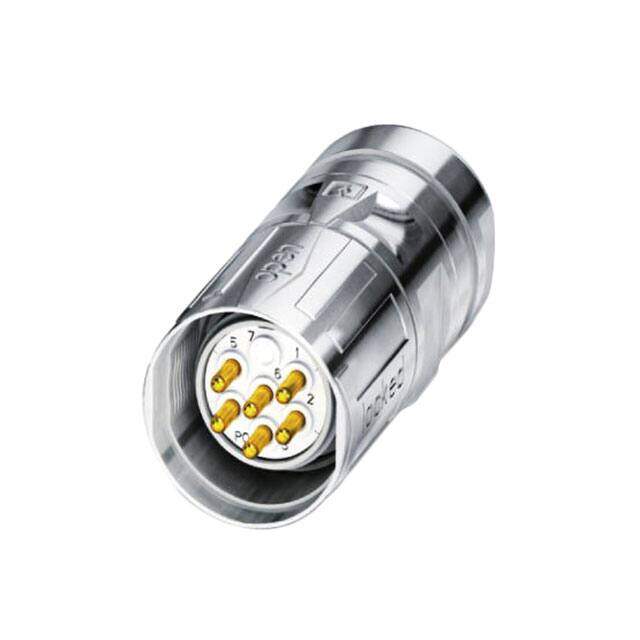

1619503
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CA RoHS Compliant 2015 N (Normal) Circular Connector -40C~125C
PDF
/
Inventory: 1125
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Copper Zinc
Mounting Type Free Hanging (In-Line)
Number of Pins 7
Shell Material Gadolinium-Zinc
Housing Material Plastic
Insert Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2015
Series CA
Feature Backshell, Coupling Nut
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 7 (Power)
Color Silver
Fastening Type Push-Twist
Contact Finish - Mating Gold
Orientation N (Normal)
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code not_compliant
Shell Size - Insert M23-7
Cable Opening 0.394 ~ 0.571 (10.00mm ~ 14.50mm)
Compliance
RoHS Status RoHS Compliant
