1590415
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

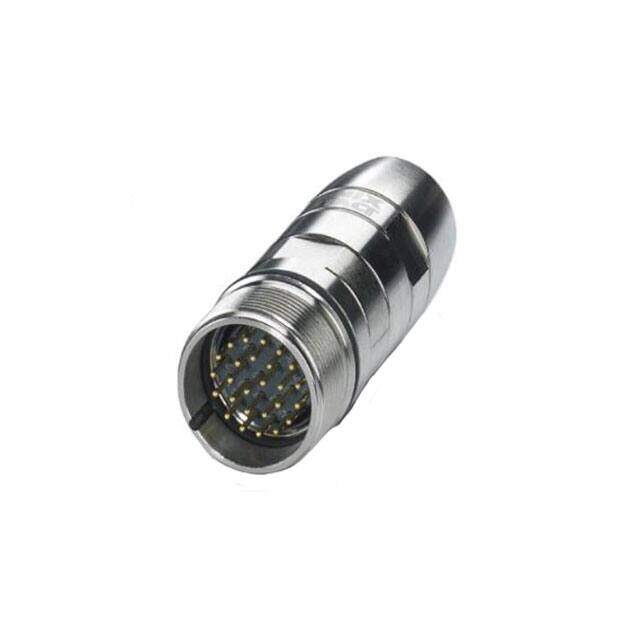

CONN RCPT MALE 28POS GOLD SOLDER
PDF
/
Inventory: 1137
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Cable Opening 0.079 ~ 0.571 (2.00mm ~ 14.50mm)
Shell Size - Insert M27-28
Reach Compliance Code not_compliant
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Current Rating (Amps) 8A
Contact Finish - Mating Gold
Fastening Type Threaded
Color Silver
Number of Positions 28 (Power)
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
Series HC
Published 2016
Packaging Bulk
Operating Temperature -20°C~125°C
Physical
Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Gadolinium-Zinc
Mounting Type Free Hanging (In-Line)
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 5 Weeks
