RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors

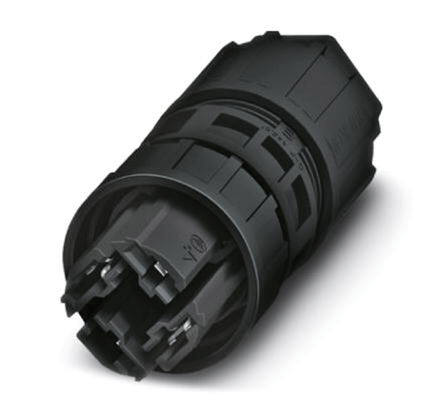

Description Plug-in connector QPD P 3PE2,5 9-14 BK BK 1582638 Phoenix Contact
PDF
/
Inventory: 1180
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP66, IP68, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Cable Opening 0.354 ~ 0.551 (9.00mm ~ 14.00mm)
Number of Contacts 4
Current Rating 20A
Ingress Protection IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Contact Finish - Mating Silver
Fastening Type Threaded
Voltage - Rated 630V
Color Black
Number of Positions 4 (3 + PE)
Connector Type Distributor
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Backshell
Series QPD
Published 2013
Packaging Bulk
Operating Temperature -40°C~100°C

Physical

Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Housing Material Polyamide
Shell Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper

Supply Chain

Factory Lead Time 3 Weeks
