1582637
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

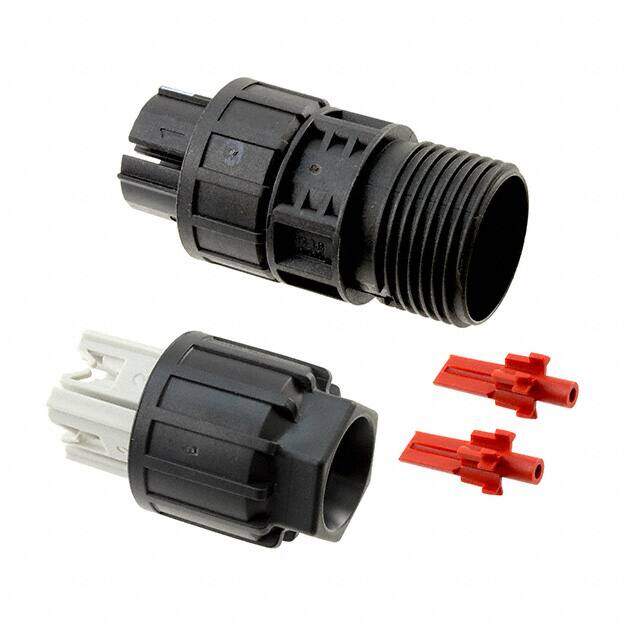

Plug-in connector QPD P 3PE2,5 6-10 BK BK 1582637 Phoenix Contact
PDF
/
Inventory: 1102
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Copper
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA), Nylon
Housing Material Polyamide
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2013
Series QPD
Feature Backshell
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Distributor
Number of Positions 4 (3 + PE)
Color Black
Voltage - Rated 630V
Fastening Type Threaded
Contact Finish - Mating Silver
Ingress Protection IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Current Rating 20A
Number of Contacts 4
Cable Opening 0.236 ~ 0.394 (6.00mm ~ 10.00mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Ratings Dust Tight, IP66, IP68, Waterproof
