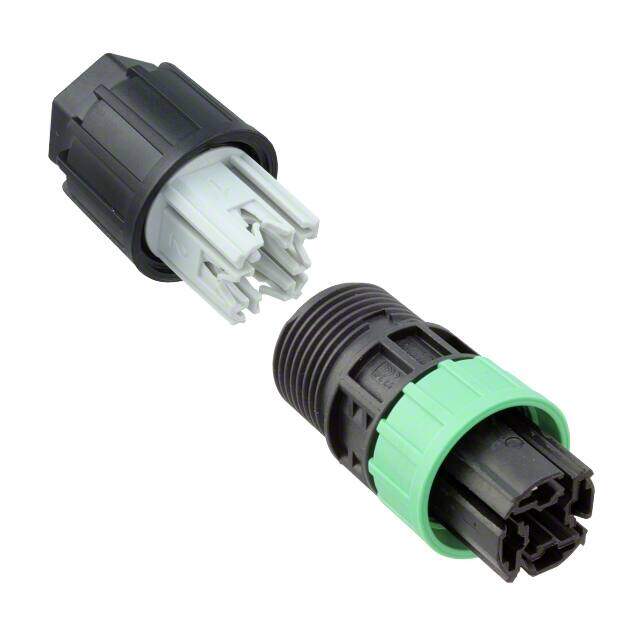

1582205
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN DISTRIBUTOR 4POS IDC
PDF
/
Inventory: 1361
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 76mm
Technical
Wire/Cable Diameter -14 mm
Cable Opening 0.354 ~ 0.551 (9.00mm ~ 14.00mm)
Backshell Type SOLID
Empty Shell NO
Contact Gender MALE
Current Rating 20A
Ingress Protection IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Silver
Fastening Type Threaded
Voltage - Rated 630V
Color Black, Green
Number of Positions 4 (3 + PE)
Connector Type Distributor
ECCN Code EAR99
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell
Series QPD
Published 2012
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 99.999994g
Housing Material Polyamide
Shell Material Polyamide (PA), Nylon
Number of Pins 4
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Silver, Tin
Contact Material Copper
Supply Chain
Factory Lead Time 3 Weeks
