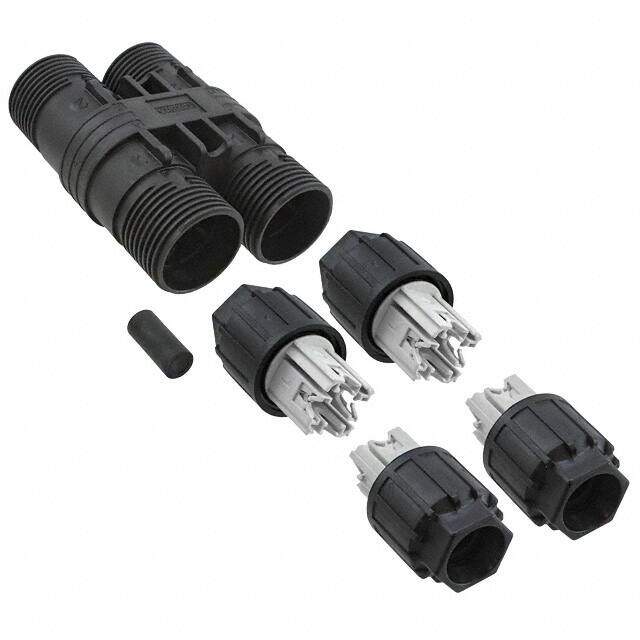

1582145 image
Favorite
1582145 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONN H-DISTRIBUTOR 4POS IDC
PDF
/
Inventory: 1131
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Dust Tight, IP66, IP68, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Wire/Cable Diameter 10 mm
Cable Opening 0.236 ~ 0.394 (6.00mm ~ 10.00mm)
Number of Poles 4
Number of Contacts 3
Current Rating 20A
Ingress Protection IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Orientation Straight
Contact Finish - Mating Silver
Fastening Type Threaded
Voltage - Rated 630V
Color Black
Number of Positions 4 (3 + PE)
Connector Type H-Distributor
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Backshell
Series QPD
Published 2011
Packaging Bulk
Operating Temperature -40°C~100°C

Physical

Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon
Weight 99.999994g
Housing Material Polyamide
Shell Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold, Silver, Tin
Contact Material Copper

Supply Chain

Factory Lead Time 3 Weeks
