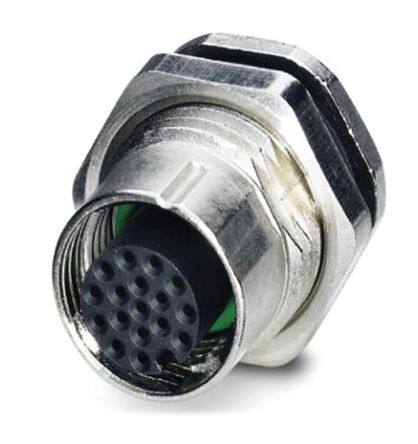

1559958 image
Favorite
1559958 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Circular Connectors
Description Circular Metric Connectors 17P FEMALE STRAIGHT
PDF
/
Buying Options
Total Price: USD $48.66
Unit Price: USD $48.6552
≥1 USD $48.6552
≥10 USD $44.76032
≥100 USD $41.354896
≥500 USD $39.408688
Inventory: 39
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Thread Size M12
Number of Ports 1
Plating Nickel, Zinc
Max Current Rating 1.5A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert M12-17
Shell Finish Nickel
Current Rating 1.5A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 17
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Twist
Voltage - Rated 30V
Color Silver
Number of Positions 17
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series DSI
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C

Physical

Insert Material Polyamide (PA66), Nylon 6/6
Shell Material Zinc Die Cast
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Front Side Nut, Panel, Through Hole
Contact Material Copper Zinc

Supply Chain

Factory Lead Time 8 Weeks
